Multipath Failover Simulation with QEMU

While working on a Ceph OSD multipath issue, I came across a helpful post from Dan Horák on how to simulate a multipath device under QEMU.

qemu-kvm ... -device virtio-scsi-pci,id=scsi \
  -drive if=none,id=hda,file=<path>,cache=none,format=raw,serial=MPIO \
  -device scsi-hd,drive=hda \
  -drive if=none,id=hdb,file=<path>,cache=none,format=raw,serial=MPIO \
  -device scsi-hd,drive=hdb"
  • <path> should be replaced with a file or device path (the same for each)
  • serial= specifies the SCSI logical unit serial number

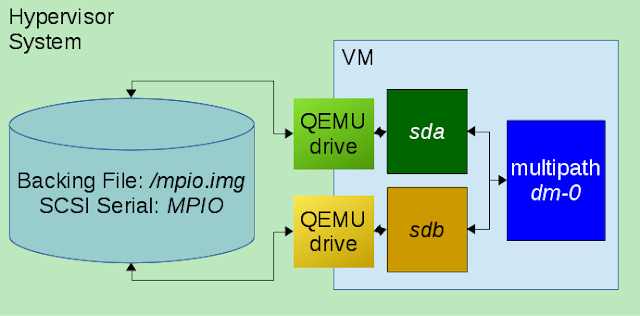

This attaches two virtual SCSI devices to the VM, both of which are backed by the same file and share the same SCSI logical unit identifier.
Once booted, the SCSI devices for each corresponding path appear as sda and sdb, which are then detected as multipath enabled and subsequently mapped as dm-0:

         Starting Device-Mapper Multipath Device Controller...
[  OK  ] Started Device-Mapper Multipath Device Controller.
[    1.329668] device-mapper: multipath service-time: version 0.3.0 loaded
rapido1:/# multipath -ll
size=2.0G features='1 retain_attached_hw_handler' hwhandler='0' wp=rw
|-+- policy='service-time 0' prio=1 status=active
| `- 0:0:0:0 sda 8:0  active ready running
`-+- policy='service-time 0' prio=1 status=enabled
  `- 0:0:1:0 sdb 8:16 active ready running

QEMU additionally allows for virtual device hot(un)plug at runtime, which can be done from the QEMU monitor CLI (accessed via ctrl-a c) using the drive_del command. This can be used to trigger a multipath failover event:

rapido1:/# mkfs.xfs /dev/dm-0
meta-data=/dev/dm-0              isize=256    agcount=4, agsize=131072 blks
         =                       sectsz=512   attr=2, projid32bit=1
         =                       crc=0        finobt=0, sparse=0
data     =                       bsize=4096   blocks=524288, imaxpct=25
         =                       sunit=0      swidth=0 blks
naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
log      =internal log           bsize=4096   blocks=2560, version=2
         =                       sectsz=512   sunit=0 blks, lazy-count=1
realtime =none                   extsz=4096   blocks=0, rtextents=0
rapido1:/# mount /dev/dm-0 /mnt/
[   96.846919] XFS (dm-0): Mounting V4 Filesystem
[   96.851383] XFS (dm-0): Ending clean mount

rapido1:/# QEMU 2.6.2 monitor - type 'help' for more information
(qemu) drive_del hda

rapido1:/# echo io-to-trigger-path-failure > /mnt/failover-trigger
[  190.926579] sd 0:0:0:0: [sda] tag#0 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08
[  190.926588] sd 0:0:0:0: [sda] tag#0 Sense Key : 0x2 [current]
[  190.926589] sd 0:0:0:0: [sda] tag#0 ASC=0x3a ASCQ=0x0
[  190.926590] sd 0:0:0:0: [sda] tag#0 CDB: opcode=0x28 28 00 00 00 00 02 00 00 01 00
[  190.926591] blk_update_request: I/O error, dev sda, sector 2
[  190.926597] device-mapper: multipath: Failing path 8:0.

rapido1:/# multipath -ll
size=2.0G features='1 retain_attached_hw_handler' hwhandler='0' wp=rw
|-+- policy='service-time 0' prio=0 status=enabled
| `- 0:0:0:0 sda 8:0  failed faulty running
`-+- policy='service-time 0' prio=1 status=active
  `- 0:0:1:0 sdb 8:16 active ready  running

The above procedure demonstrates cable-pull simulation while the broken path is used by the mounted dm-0 device. The subsequent I/O failure triggers multipath failover to the remaining good path.

I've added this functionality to Rapido (pull-request) so that multipath failover can be performed in a couple of minutes directly from kernel source. I encourage you to give it a try for yourself!


  1. Hm, this doesn't seem to work any more.... I get error that qemu-system-x86_64 cannot get a write lock on the image.

    1. Yes, I noticed the same with recent QEMU versions. I'll update this post when I have a fix / workaround for this.

      Thanks for the feedback!

    2. After some searching I found the file.locking=off option, which makes it work on my QEMU 2.12.0:

      -device virtio-scsi-pci,id=scsi \
      -drive if=none,id=hda,file=$HDA,cache=none,format=raw,file.locking=off \
      -device scsi-hd,drive=hda,serial=MPIO \
      -drive if=none,id=hdb,file=$HDA,cache=none,format=raw,file.locking=off \
      -device scsi-hd,drive=hdb,serial=MPIO \

      Also, to prevent a deprecation warning,the serial option is moved from -drive to -device.

      Disclaimer: I am only using this on a throwaway testing machine, no valuable data.

    3. Thanks Martin! I'll update the page with this information.
